Parallel Hybrid Solutions

by Esco Power

As part of the Belgian Esco-Group, Esco Power is known for solutions in transmissions for industry and marine applications. It’s logic that they were asked for hybrid solutions for these markets. Looking to the market, they didn’t find any optimum proposal. So Esco Power decided to develop a complete new and unique concept, especially for heavy duty applications. The Parallel Hybrid Transmission PHT was born!

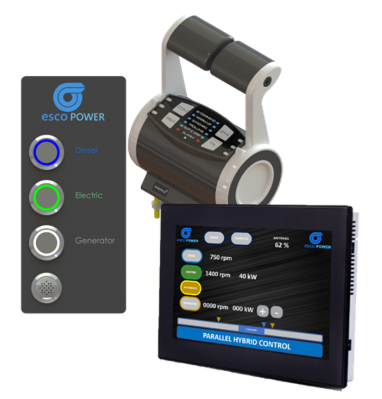

This gives the best of both worlds, as diesel and electric can be used whenever the operator requests or needs and in the optimum curve field. Now we can perfectly show you in our facility how it works even including an automatic mode of operating, going from electric to diesel mode. Don't hesitate and make an appointment to see how to go into the hybrid era !

Esco Power gave a new dimension to the marine hybrid transmission. With all his features, this parallel marine hybrid transmission PHT is unique and is successful to bring all installed electric power available at the driveline of each vessel : Commercial boats, workboats, yachts, tugboats, fishing vessels, passenger vessels ... all hybrid marine propulsion applications are possible.

Also Industrial hybrid applications are using our PHT for his features, robustness and easy to install.

Parallel Hybrid Transmission – PHT

The Parallel Hybrid Transmissions, designed for heavy duty applications with diesel engines from 200 HP to 2250 HP, has a built-in 24 or 110 VDC electro-magnetic clutch working independently from any other part of transmission to engage and disengage the diesel engine from the driveline. The PHT has an input housing SAE 0-1-2-3 and SAE 11.5”, 14” or 18” elastic coupling for direct connection to the engine housing and flywheel.
